Cross-compatible | MagMech compatible | Full range 0.01mm RT | Quick disassembly

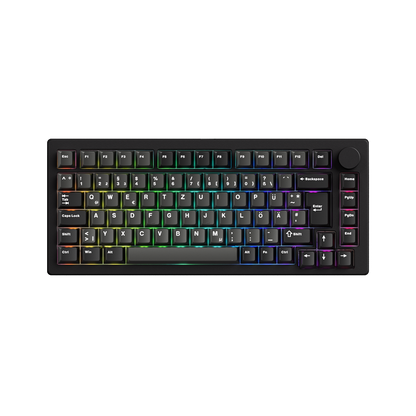

MonsGeek M1 V5 TMR Magnetic Keyboard



ball catch design
Schnelle Demontage ohne Schrauben oder Werkzeug
Unlike typical mechanical screw keyboards, the M1 V5 series features a ball lock to secure the case and an adjustable loading force that can be changed by tightening the screws during installation to increase safety and stability.

Kreuzkompatibel mit gängigen Magnetschaltern
The MonsGeek M1 V5 TMR Magnetic Keyboard offers compatibility with five third-party magnetic switches. Users can select the appropriate switch from the MonsGeek driver list and easily calibrate the keyboard after replacement. Mixing and matching switches in different keys is also possible.
Disclaimer: High-precision switches require adjustment and experimentation with the keyboard. The switches listed are guaranteed to work with an accuracy of 0.01 mm. Other switches may work but will not achieve the stated accuracy.

MagMech: Compatible with magnetic switches and mechanical switches
A truly customizable magnetic switch keyboard
- TMR takes precision to the next level. Users can freely combine magnetic switches and any 5-pin mechanical switches like never before!
- Imagine replacing only the WASD and arrow keys with magnetic switches and leaving the rest of the keys mechanical for a classic mechanical typing experience. What a dream!

Full range RT0.01mm
Ultra-precise 0.01mm quick-release and adjustable actuation distance in 0.01mm increments. Users can customize their typing or gaming experience for faster response times and improved accuracy - perfect for competitive gaming.

ARM Cortex-M4-CPU
The powerful CPU delivers enhanced processing performance with low power consumption. It features automatic calibration between -20°C and 80°C, ensuring faster performance and longer battery life (wireless models only).

Universelle 8K Polling-Rate
With a polling rate of 8000 Hz for all keys in wired or 2.4G wireless mode, you can enjoy ultra-fast response times and smoother, more precise inputs - perfect for gaming and high-performance tasks.
Klassische Merkmale
Magnetic Switches
-
Akko AstroAim Magnetic Switch
- Type : Linear
- Total Travel : 3.5±0.1mm
- Initial Force : 35gf
- End Force : 55gf
- Initial Magnetic Flux : 95±15Gs(PCB1.6mm) / 110±15Gs(PCB1.2mm)
- Bottom-out Magnetic Flux: 580±40Gs(PCB1.6mm) / 720±50Gs(PCB1.2mm)
- Top/Stem/Bottom: PC/POM/PA66
- LED diffuser
-
Akko Astrolink Magnetic Switch
- Type : Linear
- Total Travel : 3.4mm
- Initial Force : 36±5gf
- End Force : 46gf
- Initial Magnetic Flux : 90±15Gs(PCB1.6mm) / 100±15Gs(PCB1.2mm)
- Bottom-out Magnetic Flux: 480±40Gs(PCB1.6mm) / 640±40Gs(PCB1.2mm)
- Top/Stem/Bottom: POM/PC/Nylon
- LED diffuser
-
Akko Glare Magnetic Switch
- Type : Linear
- Total Travel: 3.4mm
- Operating Force: 25gf Min
- Actuation force at 2.0mm Travel: 40±5gf
- End Force: 48gf Max
- Initial Magnetic Flux: 95+15GS (PcB1.6mm)
- Bottom Magnetic Flux: 589+50GS (PcB1.6mm)
- Top/Stem/Bottom: PC/POM/PC
- LED diffuser

Built-in 8000mAh battery
Thanks to the powerful battery with a capacity of approximately 8000 mAh, users can type, play or be productive for longer periods of time without having to constantly recharge.

RGB
The MonsGeek M1 V5 TMR Magnetic Keyboard lets you type with good backlighting even in the dark. It features 15 preset backlight modes.
Akko Glare Magnetic Switch features an LED diffuser for 30% brighter RGB lighting
MonsGeek M1 V5 TMR Magnetic Keyboard Multi-Mode

Need more foam?
The MonsGeek M1 V5 series features a comprehensive upgrade of the noise cancellation system, providing more flexibility to experiment with a variety of sound profiles.

Information about the product
MonsGeek M1 V5 TMR Magnetic Keyboard
Structure:
Case material:
Connectivity:
Led:
Battery:
Hot swap:
Magnetic switch cross-compatibility:
Unterstützte mechanische schalter:
Rt-stabilisator:
Rt accuracy:
Erfassungsbereich:
Plate:
Key feature:
Stabilizer:
Keycap:
Software:
Scope of delivery:
