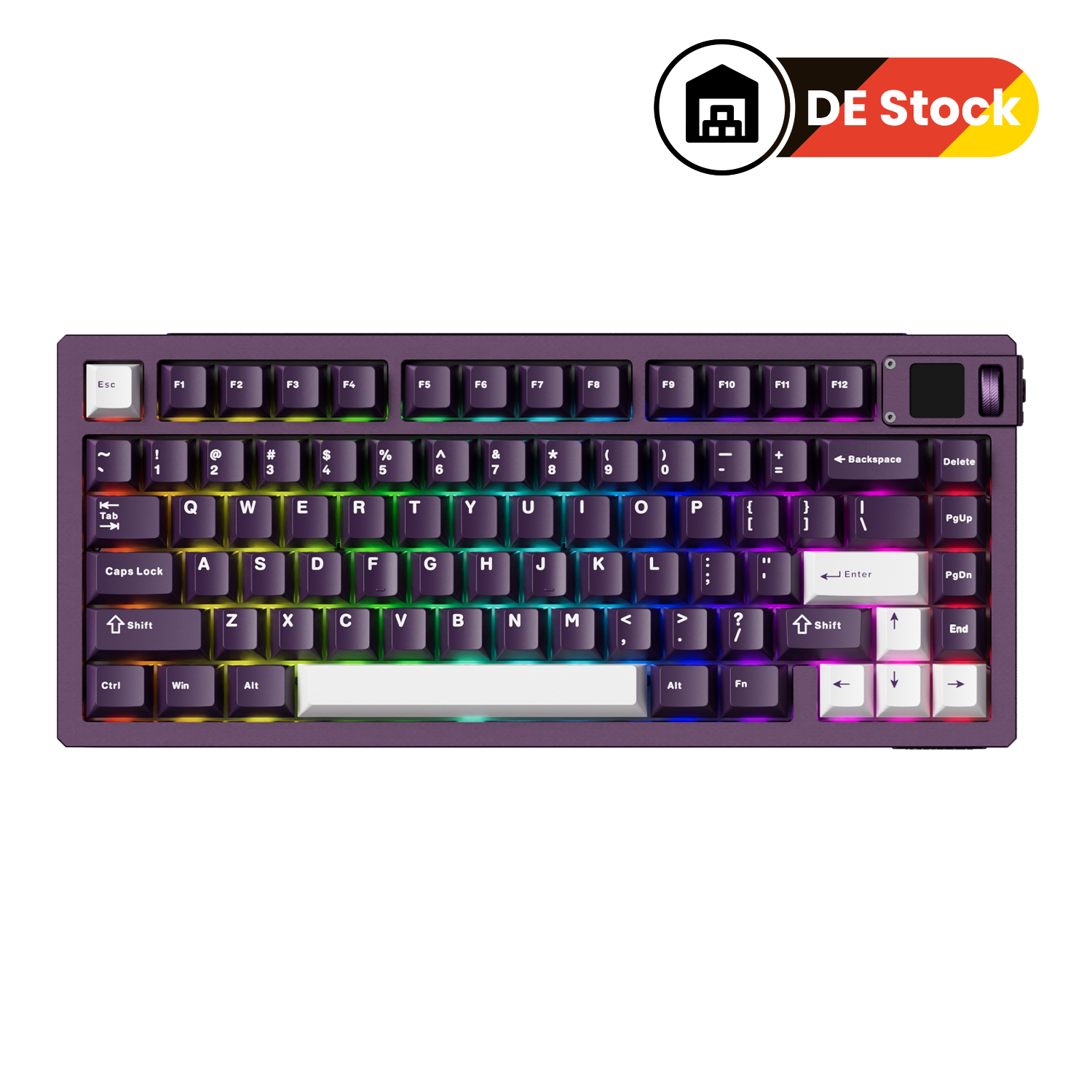

Name: MOD 007 V5 HE Magnetic Keyboard
Brand: AKKO
SKU: 099-00A-00S-01Q-090-098-097
Price: 226.09 EUR
Availability: InStock
Rating: 5.0 (8 reviews)

€226,09 EUR

~~€226,09 EUR~~ €226,09 EUR

Eigenschaften

Bildschirm
8K-Abrufrate
Cross-Compatible
Rapid Trigger
Rapid Disassemble
Custom Vertical knob
32-bit Cortex-M4
ARGB
Aluminum CNC
Multi-mode

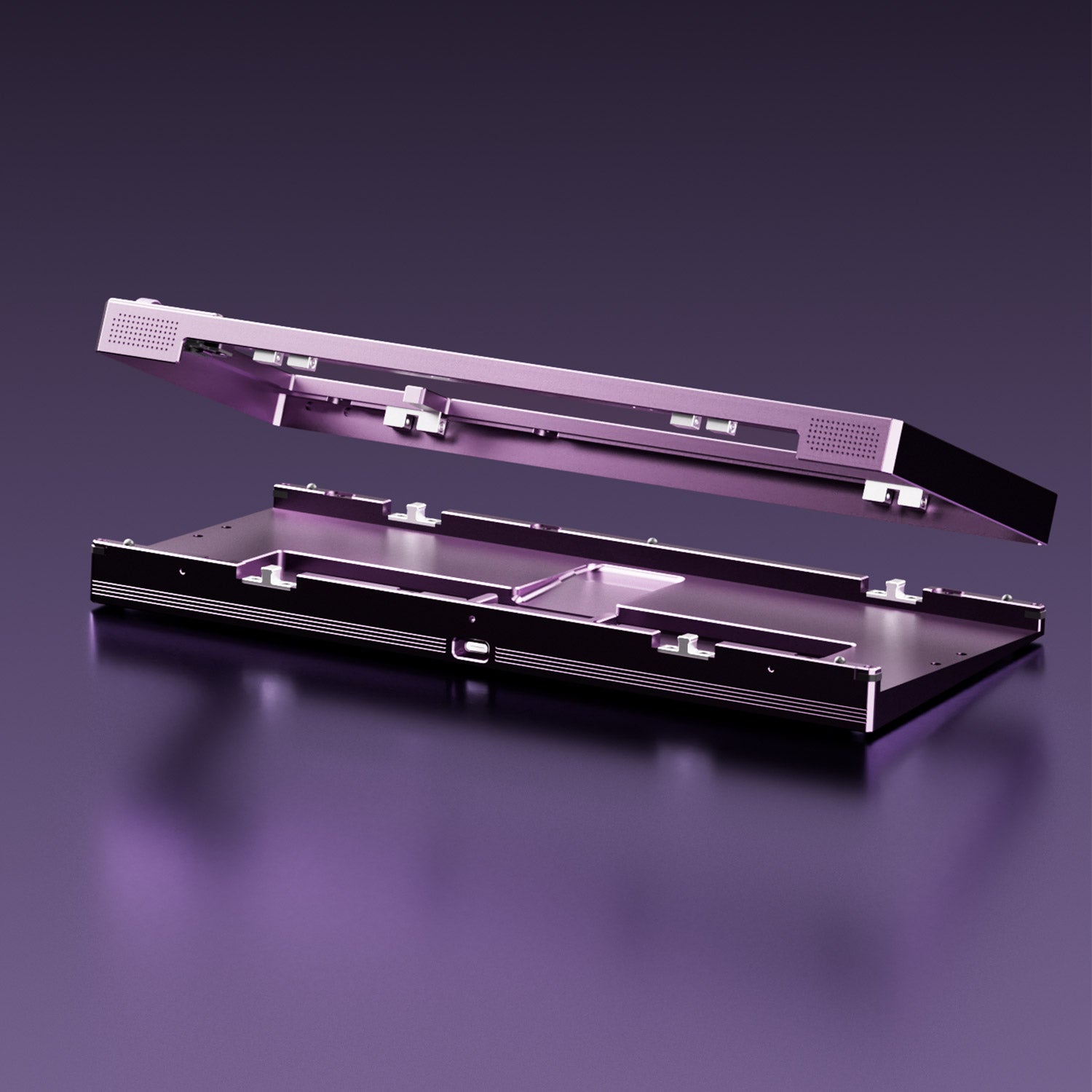

Akko MOD 007B V5 HE Magnetic Keyboard RapID Disassemble

Quick disassembly

Unlike typical mechanical screw-type keyboards, the MOD 007 V5 HE Magnetic Keyboard features a ball lock to secure the housing and an adjustable load force that can be changed by tightening the screws during installation to increase safety and stability.

Akko 5075 V3 HE Magnetic Keyboard RT 0.005mm

Full range RT0.005mm

MOD 007 V5 HE Magnetic Keyboard offers an ultra-precise 0.005 mm quick-release trigger and adjustable actuation distance in 0.005 mm increments. Users can customize their typing or gaming experience for faster response times and improved accuracy, perfect for competitive games.

ARM Cortex-M4 CPU

The powerful CPU delivers improved processing performance with low energy consumption. It features automatic calibration between -20 °C and 80 °C, ensuring faster performance.

Akko MOD 007B V5 HE Magnetic Keyboard 8K Polling Rate

Universal 8K refresh rate

With an 8000 Hz sampling rate for all keys in wired or 2.4 GHz wireless mode, enjoy ultra-fast response times and smoother, more precise inputs – perfect for gaming and demanding tasks.

ARGB with a refresh rate of 500 Hz

MOD 007 V5 HE Magnetic Keyboard features ARGB (addressable RGB) with individually controllable LEDs for smooth, flicker-free lighting. With alpha channel integration and a 500Hz refresh rate, it offers richer dynamic effects and reduces visual fatigue – perfect for gaming and aesthetic builds.

Akko MOD 007B V5 HE Magnetic Keyboard Display Screen

Programmable display and vertical rotary knob

Screen with multimedia functions and support for user-uploaded GIFs (controlled by Akko Cloud Driver).

Easy control of volume and lighting, as well as programming of other functions.

RT stabilizer

This "RT Stabilizer" mode is particularly useful when set to a rapid-trigger precision of 0.005 mm, as magnetic switch keyboards can experience unintended inputs or interruptions due to slight hand tremors, which can disrupt the entire gaming experience. Four different filtering levels can be activated via the Akko driver.

Akko Astrolink Magnetic Switch
- Type : Linear
- Total Travel : 3.4mm
- Initial Force : 36±5gf
- End Force : 46gf
- Initial Magnetic Flux :
  90±15Gs(PCB1.6mm) / 100±15Gs(PCB1.2mm)
- Bottom-out Magnetic Flux:
  480±40Gs(PCB1.6mm) / 640±40Gs(PCB1.2mm)
- Top/Stem/Bottom: POM/PC/Nylon
- LED Diffuser
Akko AstroAim Magnetic Switch
- Type : Linear
- Total Travel : 3.5±0.1mm
- Initial Force : 35gf
- End Force : 55gf
- Initial Magnetic Flux :
  95±15Gs(PCB1.6mm) / 110±15Gs(PCB1.2mm)
- Bottom-out Magnetic Flux:
  580±40Gs(PCB1.6mm) / 720±50Gs(PCB1.2mm)
- Top/Stem/Bottom: PC/POM/PA66
- LED Diffuser

Classic functions

Snap Key
Snap Key is Akko's implementation of SOCD, which prioritizes the last key press for quick changes of direction without overriding previous inputs. This ensures smooth and responsive controls, especially in FPS games where quick reactions and precise movements are crucial.
Einstellbarer Betätigungsabstand
These magnetic switches allow users to adjust the actuation point of each key from 0.1 mm to 3.4 mm, enabling different types of pressing for gaming or typing.
Rapid Trigger (RT)
Rapid Trigger dynamically changes the trigger and deactivation points of the buttons. Using the Akko driver, users can choose between "All Buttons" or "Per Button" customization modes and activate "Non-stop Rapid Trigger" for near-instantaneous button response. This gives FPS players a competitive edge in fast-paced games.
Dynamic Keystrokes (DKS)
Pressing a key can trigger four different key operations.

Depending on the pressure applied: A light press triggers action 1, a stronger press activates action 2, and releasing the button also supports a two-stage button setting.
Toggle Key (TGL)
TGL, or toggle switch, transforms a button into a rocker switch. Pressing this switch allows you to activate one of two scenarios: either continuously holding the button/function down or repeatedly triggering the button/function at high frequency. Focus on your selected product, collection, or blog post. Add details about availability and style, or even leave a review.
Mod-Tap
Mod-Tap is a design that offers convenience while gaming. It allows the creation of dedicated or dual-function keys based on keystroke behavior.

Two functions can be performed with a single keystroke: Hold down the key for one function and press the key for the other function.

Akko MOD 007B V5 HE Magnetic Keyboard 8000mAh Battery

Built-in 8000 mAh battery (wireless)

Thanks to the powerful battery with a capacity of around 8000 mAh, users can type, play or work for a long time without interruption and without having to constantly recharge.

Akko MOD 007B V5 HE Magnetic Keyboard Multi-mode

Multi-Modus(Wireless)

MOD 007 V5 HE can be connected to multiple devices via Bluetooth 5.0, Multi-Host 2.4 GHz (with receiver) and wired Type-C modes with a simple switch.

Akko MOD 007B V5 HE Magnetic Keyboard Layout

Akko MOD 007B V5 HE Magnetic Keyboard Size

Das Gewicht und der Akzent

PVD Mirror Weight
Ice Crystal Weight
PVD Mirror Weight

Akko MOD 007B V5 HE Magnetic Keyboard Accent Bar

Aluminum Weight & Side Accentuation Strip

Akko new aluminum weight, beautiful and designable pole.

Featuring an elegant metal strip and fine brushing, the side design exudes pure sophistication.

Premium carrier bag

The MOD 007 V5 HE Magnetic Keyboard is compatible with the Akko Premium Carrying Case, which offers additional protection and portability.

The carrying case is sold separately.

Cherry Profile Double-Shot PBT Keycaps

Cherry Profile keycaps feature a flat, molded design that provides a comfortable typing angle while ensuring precise keystroke consistency.

The PBT keycaps feature exceptional oil resistance, which improves the overall typing feel while ensuring the longevity of the lettering.

Akko MOD 007B V5 HE Magnetic Keyboard Structure

Gasket Mount

Die Akko-Tastatur mit Dichtung ist eine Art von mechanischer Tastatur, bei der ein Dichtungsmaterial wie Silikon oder Neopren verwendet wird, um eine "schwimmende" Befestigung für die Schalter zu schaffen. Die Dichtung befindet sich zwischen der Platte und der Leiterplatte, was ein flexibleres und gedämpftes Tippen ermöglicht.

Dieses Design ermöglicht mehr Flexibilität und Dämpfung, was zu einem weicheren Tippgefühl führen kann.

Informationen zum Produkt

MOD 007 V5 HE Magnetic Keyboard

Struktur:

Gasket Mount

Layout:

US-ANSI

Akku:

8000 mAh (Wireless)

Verbindung:

Wired: USB Type-C; Wireless: Bluetooth5.0 / 2.4GHz / USB Type-C

Abfragequote:

Wired: 8,000Hz; Wireless: 8,000Hz in wired mode and in 2.4 GHz mode, 125 Hz in Bluetooth mode

Abtastrate:

3.2000Hz

Led:

South-facing ARGB (500Hz)

Precision:

0.005 mm

Schneller auslöser (rt):

Unterstützung

Dynamische tastenanschläge (dks):

Unterstützung

N-key rollover:

Unterstützung

Magnetischer schalter kreuzkompatibilität:

Unterstützung

Rt-stabilisator:

Unterstützung

Rt-genauigkeit:

0.005–2,500 mm

Erfassungsbereich:

0.100–3.400 mm

Switches:

Akko Astrolink Magnetic Switch/Akko AstroAim Magnetic Switch

Platte:

Aluminum Plate & FR4 Plate

Stabilisator:

Pre-lubricated demagnetized plate-mounted stabilizer

Keycaps:

Cherry Profile Double-shot PBT

Kompatibles system:

Mac & Windows & Linux

Maße:

326*137*40mm (rear height), 31mm (front height)

Software:

Akko Web&Cloud Driver

Andere:

Poron sheet foam/ IXPE switch padding/ PET layer/ housing foam

Paketliste:

Keyboard × 1, Manual × 1, Cable × 1, Keycap puller × 1, Switch puller × 1, Wireless receiver × 1
