MonsGeek M1 DIY Kit
M1 Förderung
Kaufen Sie M1 DIY Kits und erhalten Sie 2 Packungen Schalter (45 Stück) oder 1 Keycaps Set gratis.
Wählen Sie jetzt Switches.
Wählen Sie jetzt Keycaps.
Note: Not associated with other discounts.
Bitte geben Sie Ihre E-Mail im Feld "Benachrichtigen Sie mich, wenn verfügbar" ein, wenn das Produktmodell nicht auf Lager ist.
MONSGEEK M1 QMK DIY KIT US-ANSI/ISO Version
Monsgeek M1 plate ANSI Layout not fit for the ISO version M1 DIY Kit
VIA Web - How to add MonsGeek device

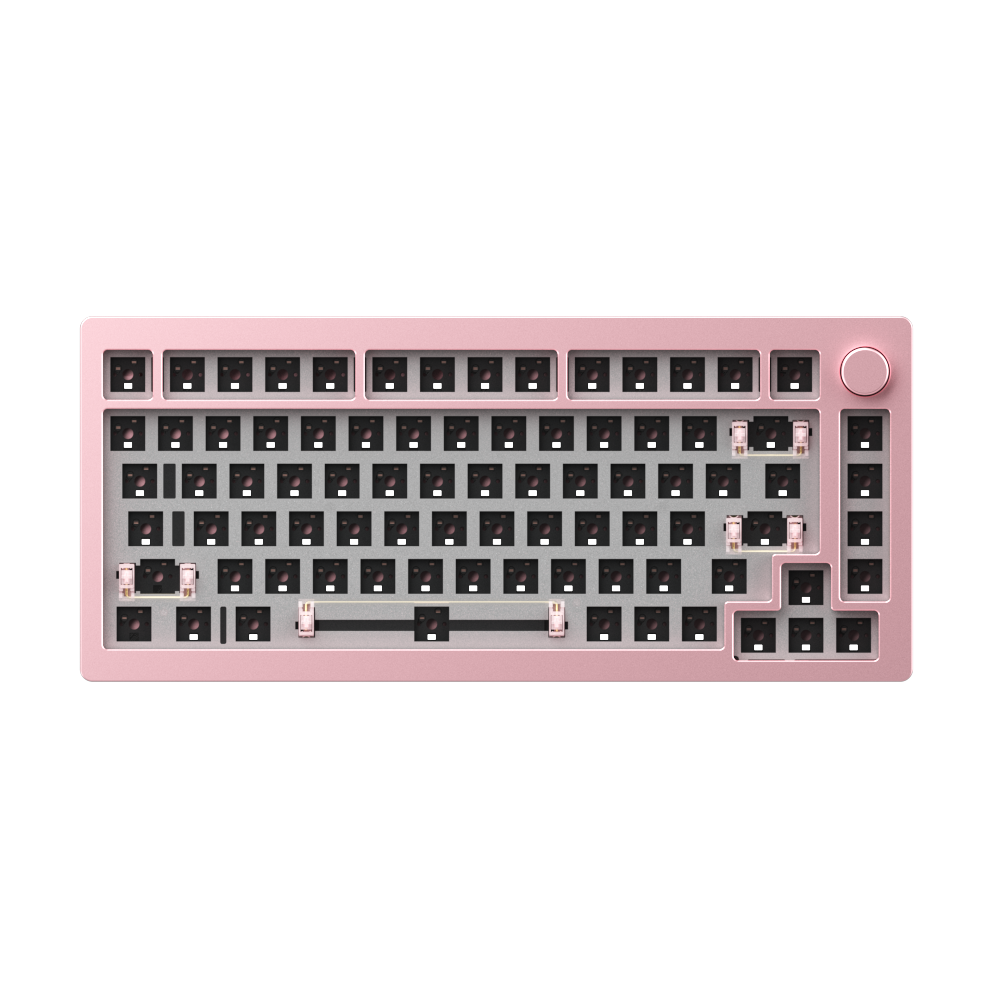

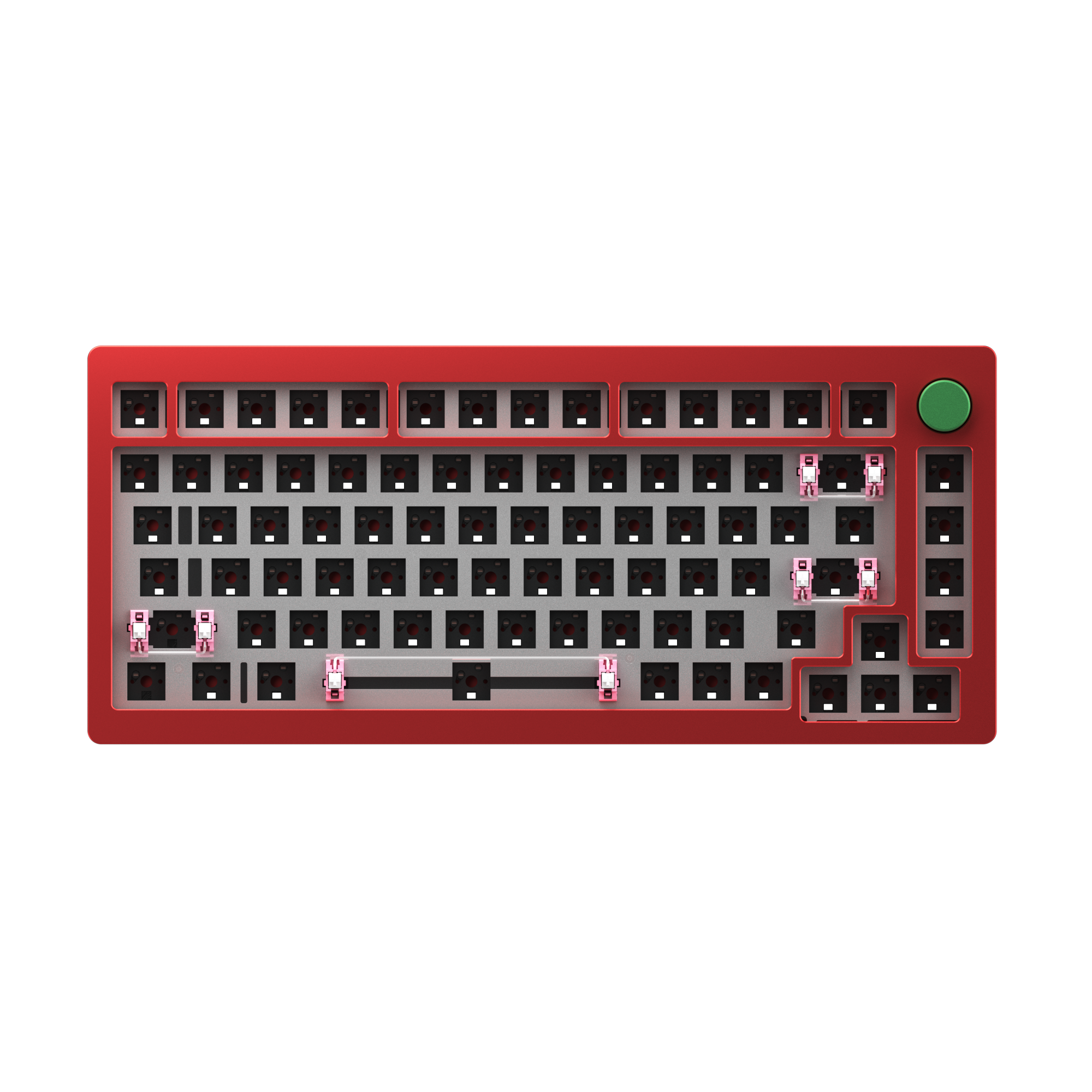

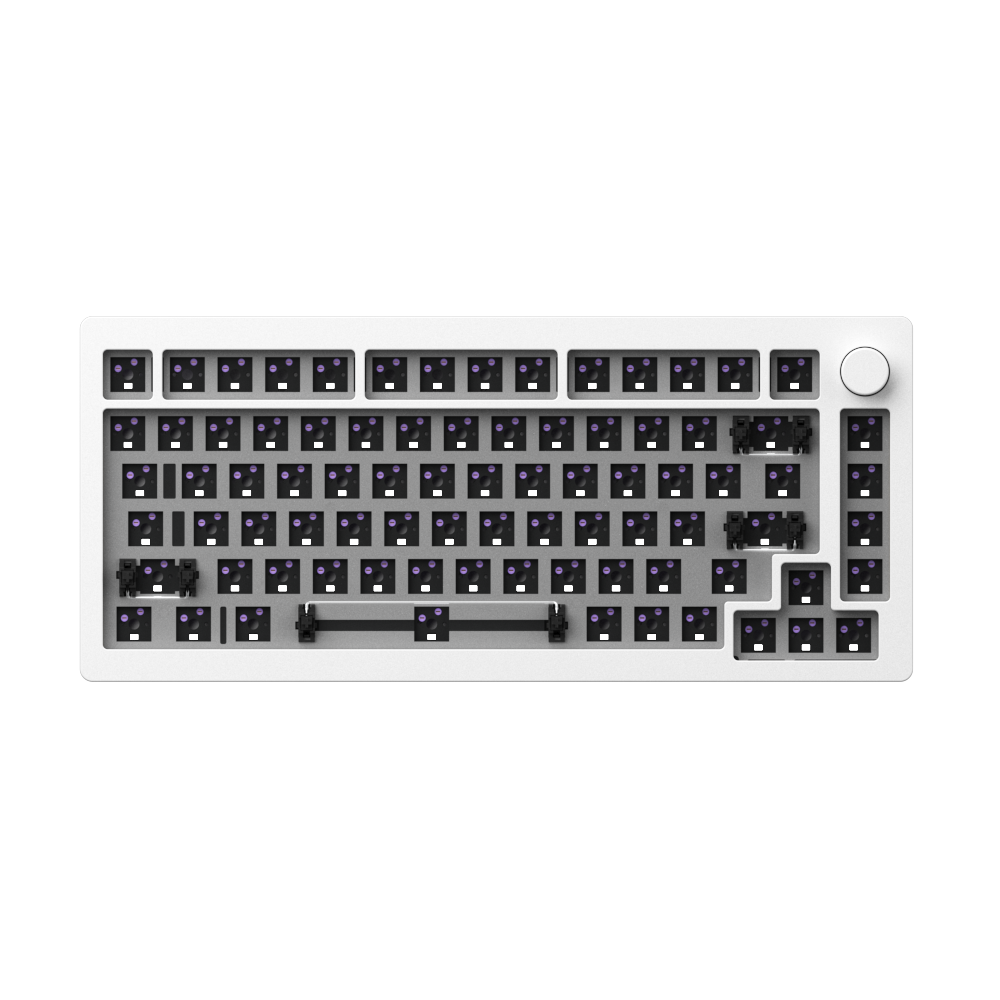

M1 Hot-Swappable Barebone Keyboard Kit with Knob, a South-facing DIY kit is available now.
Please note: This keyboard is a barebones keyboard and requires simple assembly. Switches and keycaps (sold separately).
the enter key of ISO UK only support 3-pin switches, other keys support 5-pin switches
The Sound Test was made on a prototype without Case Foam and Tape Mod. Aluminum DIY kits are now more accessible than ever!
Specifications:- 75% Full CNC Aluminium Barebone Kit with Rotary Knob
- Gasket-Mount with Silicone Gaskets
- Colors: Pink,Black,Purple,Red,White
- RGB Per-key
- QMK/VIA supported
- RGB Backlit
- Telfon Pads(for possible force mod break)
- Screw-in Stabilizer
- TTC Gaming Hotswap Sockets
- Size: 33.2cm x 14.7cm x 3.3cm
- Barebone Weight: 1.96kg
- Polycarbonate Plate by default (add-on FR4, ALU and POM Plates available as Extra)

South-facing PCB
The south-facing PCB of the M1 avoids causing interference with Cherry profile keycaps, offering more compatibility and flexibility.
It comes with extra teflon pads (in case you want to want to perform the Force Break mod) and tape (in case you want to perform a Tape mod). The M1 offers flexibility for you to modify it and make it truly yours while also offering a great out-of-the-box experience with MonsGeek’s custom foam and gasket mount.
Accessories for better MOD experience.

South-facing PCB
The south-facing PCB of the M1 avoids causing interference with Cherry profile keycaps, offering more compatibility and flexibility.
Stabilizers
PCB Mount/Screw-in stabilizers tend to vibrate less. M1 uses Akko stabilizers (un-assembled) with nylon housing in case users want to lubricate.

QMK / VIA
MonsGeek M1 supports VIA for cross-platform (Linux/Mac/Windows) advanced keyboard configuration.
This feature is exclusively for international version of M1.
Renovated Encoder
The encoder has been designed to avoid scratching the case and offers more stability.
Golden Accent
Adding a touch of class and elegance, we opted to add a beautiful golden accent so that no matter which way you look at it, you’ll fall in love over and over again.

M1 Models:
Pink(Anodized);Black(Anodized);Purple(Anodized) ;Red(Anodized) White(Spray Paint)

PET Insulation Layer
A PET insulation layer has been added to the bottom case in order to prevent any short circuit issues. It’s rare for these issues to occur but we want to add extra protection.

3mm Case Foam
Monsgeek has developed its own budget cutom material that performs equally as well as poron.
*Disclaimer: Using thicker foam may reduce flex, whether to include it or not is down to your personal preference






Model | M1 |
Mount | Gasket |
Case Material | Aluminum CNC |
Color | Pink/Black/White/Red/Purple |
ISO Layout | Available |
Connection | USB-C Wired |
LED | RGB |
Hotswap | Yes |
Plate | PC |
Plate Foam | Yes(MonsGeek Custom Material) |
Switch Pad | IXPE |
Case Foam | Yes (MonsGeek Custom Material 3mm) |
Drying Agent | Yes |
Tape | Yes (not pre-installed) |
Stabilizer |
Akko Screw-in Stabilizer (pre-clipped, but not pre-installed, 4*2u+1*6.25u) |
Force Break Mod Stripes | Teflon Pads (not pre-installed) |
Software | VIA/QMK |
Cable | Coiled Cable |
Size | 33.2cm*14.7cm*3.3cm |
Barebone Weight | 1962g |
Shipping Notice Updated:
The final cost of your order will be calculated at checkout as VAT rates and shipping options vary for different destinations.
Duty and taxes are handeld by Akko before Shipping;
We reserve 48 hours to process orders. Shipping times depend on the shipping option chosen.
The estimated times stated below are not 100% guaranteed. An international package could experience delays like postal strikes or severe weather or Cov-19 situation.
*For most countries, we will ship by 4PX Express within 10-15 business days in most cases;
Country | Courier Service | Estimated Time |
Germany | CNE/4PX | 8-12 business days |
Netherlands | CNE/4PX | 7-10 business days |
Italy | CNE/4PX | 8-12 business days |
France | CNE/4PX | 7-10 business days |
Austria | CNE/4PX | 8-12 business days |
Spain | CNE/4PX | 8-12 business days |
UK | CNE/4PX | 8-12 business days |
Portugal | CNE/4PX | 8-12 business days |
Poland | CNE/4PX | 8-12 business days |
Belgium | CNE/4PX | 7-10 business days |
Denmark | CNE/4PX | 8-12 business days |
Luxembourg | CNE/4PX | 7-10 business days |
United Arab Emirates | CNE/4PX | 8-12 business days |
Finland | CNE/4PX | 7-16 business days |
Tracking Links:
https://www.17track.net/en
https://www.cne.com/English/
https://track.yw56.com.cn/en/index
* If you don’t receive your order within the estimated time frame provided below and suspect that it might be lost in transit, please contact Akko de Support ( support-de@akkogear.com ) and we can look into the order with the courier. Lost-in-transit requests must be submitted to Akko de Support within 1 months of the date of shipping or before the courier archives the tracking information.
Shipping countries
Most of the products of Akkogear.eu will be shipped from China. Akkogear.eu orders can be shipped to most EU countries (except outlying islands and overseas territories).
For Italy, Belgium, Denmark, Finland, France, Germany, Ireland, Norway, Poland, Portugal, Spain (50 of 52 provinces), Sweden, United Kingdom, Netherlands, Bulgaria, Croatia, Luxembourg, Austria, Greece, Latvia, Czechia, Slovakia, Slovenia, Estonia, Lithuania, Romania, Malta, Australia, Japan, New Zealand, Switzerland, Ireland, Armenia, Colombia, Kuwait, South Georgia & South Sandwich Islands
Switches:
Shipping Rate | Condition | Charge |
Free Shipping | €52.99–up | Free |
Standard Shipping | €0–€10.99 | €5.55 EUR |
Standard Shipping | €10.99–€21.98 | €7.91 EUR |
Standard Shipping | €21.99–€32.98 | €10.27 EUR |
Standard Shipping | €32.99–€52.98 | €12.99 EUR |
For Canada, United States (57 of 62 states)
Shipping Rate | Condition | Charge |
Standard Shipping | €32.99–up | €7.99 EUR |
Standard Shipping | €0–€32.98 | €5.55 EUR |
For Laos, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, Vietnam
Shipping Rate | Condition | Charge |
Free Shipping | €79.99–up | Free |
Standard Shipping | €0–€79.99 | €3.99 EUR |
For Jersey, Mexico, Mongolia, Nepal, Pakistan, Sri Lanka, Turkmenistan, Uzbekistan
Shipping Rate | Condition | Charge |
Free Shipping | €79.99–up | Free |
Standard Shipping | €0–€79.98 | €12.99 EUR |
For Cyprus, Guatemala, Hungary, Israel, Saudi Arabia, United Arab Emirates,United States (Hawaii)
Shipping Rate | Condition | Charge |
Standard Shipping | €52.99–up | €15.99 EUR |
Standard Shipping | €0–€52.98 | €12.99 EUR |
For Turkey, Qatar, Jamaica
Shipping Rate | Condition | Charge |
Standard Shipping | - | €15.99 EUR |
For Serbia
Shipping Rate | Condition | Charge |
Standard Shipping | - | €39.99 EUR |
VIA (Win) For Windows PC 2.0.5 :
VIA WEB INTERFACE – Instruction on How to Add Devices:
VIA Autoloading Device
Open the following link with Google Chrome: https://via.evove.top
In the CONFIGURE interface, please load the device per the order denoted in the picture below. You can also load the json file manually if the autoloading process fails.VIA Manually-Loading Device
Step 1.
Open the following link with Google Chrome https://usevia.app/#/design
Step 2.
Click the interface below to load the json fileStep 3.
Connect the keyboard to the computer, the following dialog box shall pop up after loading the json file. Click “connect” and then the corresponding keyboard configuration interface shall appear.If Step 3 fails, you can also load the corresponding configuration in the CONFIGURE interface.
TASTATUR
1. Werden die verkauften Tastaturen oder Tastenkappen-Sets mit einem Tastenzieher geliefert?
Alle auf unserer Website verkauften Tastaturen werden mit einem Tastenkappenabzieher geliefert. Wir können jedoch nicht garantieren, welche Art von Tastenkappenabzieher Sie erhalten, da dieser von Charge zu Charge variieren kann. Das Neon-Tastenkappen-Set hat einen Tastenabzieher.
Das R2 kompletter Tastenkappen-Set hat je nach Charge möglicherweise keinen.
Hinweis: Nur das Akko R2 Phantasie Tastenkappen-Set wird mit dem vorgesehenen Katzenpfoten-Tastenabzieher geliefert.
2. Wie kann ich feststellen, ob die Tastatur Bluetooth, kabelgebunden oder kabellos ist?
Sie können dies auf unserer Website in der Produktauflistung prüfen. Es wird auf der entsprechenden Produktdetailseite unter dem Reiter „Spezifikationen“ angezeigt. Die Akko 3084-One Piece Chopper ist zum Beispiel eine kabelgebundene Tastatur. Sie verwendet eine USB-C-Schnittstelle.
3. Unterschied zwischen Nordic und Beken Lösung für Akko Multi-Modi Tastaturen.
Chip |
||
|
Beken |
Nordic |
RGB-Hintergrundbeleuchtung |
Hell |
Leicht gedämpft |
Leistungsaufnahme |
Hoch |
Niedrig |
Batterielebensdauer (2 Stunden/Tag) |
7-10 Tage |
15-20 Tage |
2,4 GHz-Empfänger |
Lila |
Schwarz |
Verbindungsmodi |
Bluetooth 3.0, Bluetooth 5.0, 2,4 GHz, USB Typ-C |
Bluetooth 5.0, 2,4 GHz, USB Typ-C |
Makro |
Akko-Treiber (ESC/links Win/rechts Alt/Fn kann nicht programmiert werden) |
Akko-Treiber (ESC/links Win/rechts Alt/Fn kann nicht programmiert werden); Benutzer können auch Tasten über Akko Makro v1 programmieren, ohne den Treiber zu verwenden |
4. Welche LED-Lampen sollte ich wählen, wenn ich meine mechanischen Akko-Tastaturen mit LEDs ausstatten möchte?
Bei einigen unserer Modelle sind die LEDs nicht von Haus aus installiert. Für diese Tastaturen ist es möglich, LEDs zu installieren, um die Hintergrundbeleuchtung zu nutzen.
Wir empfehlen die Verwendung der folgenden zwei Arten von LED-Lampen (Dioden):
- 3 mm runde LED-Lampen
- 2 x 3 x 4 mm quadratische Kopf-LED-Dioden.
Annehmbare Spezifikationen:
Spannung: 1,8-3,6 V;
Stromstärke: weniger als 500 mA.
Beachten Sie, dass Sie nur einfarbige LED-Dioden wählen können. Wenn Sie RGB-LED-Dioden wählen, wird es nur rote Farben ausstrahlen.
